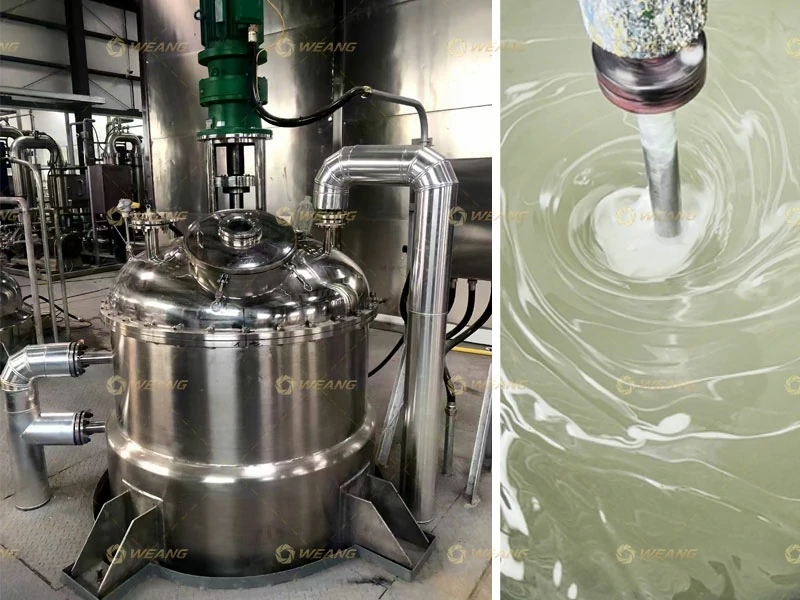

Introduction to Resin Reactors

A Resin Reactor is the core equipment used in the production of various resins, including alkyd resin, acrylic resin, epoxy resin, and unsaturated polyester resin.

It provides a sealed and precisely controlled environment for complex chemical processes such as polymerization and polycondensation, ensuring consistent product quality and stable molecular structure.

With integrated systems for temperature control, pressure regulation, mixing, and heat transfer, the reactor plays a critical role in achieving high-efficiency and safe production.

Core Structure and Working Principle

The resin reactor integrates multiple functional systems to ensure accurate and stable chemical reactions:

1. Reactor Vessel

• Provides a closed environment resistant to high temperature, pressure, and corrosion
• Typically made of stainless steel (SS304 / SS316L)
• Ensures material purity and long service life

2. Agitation System

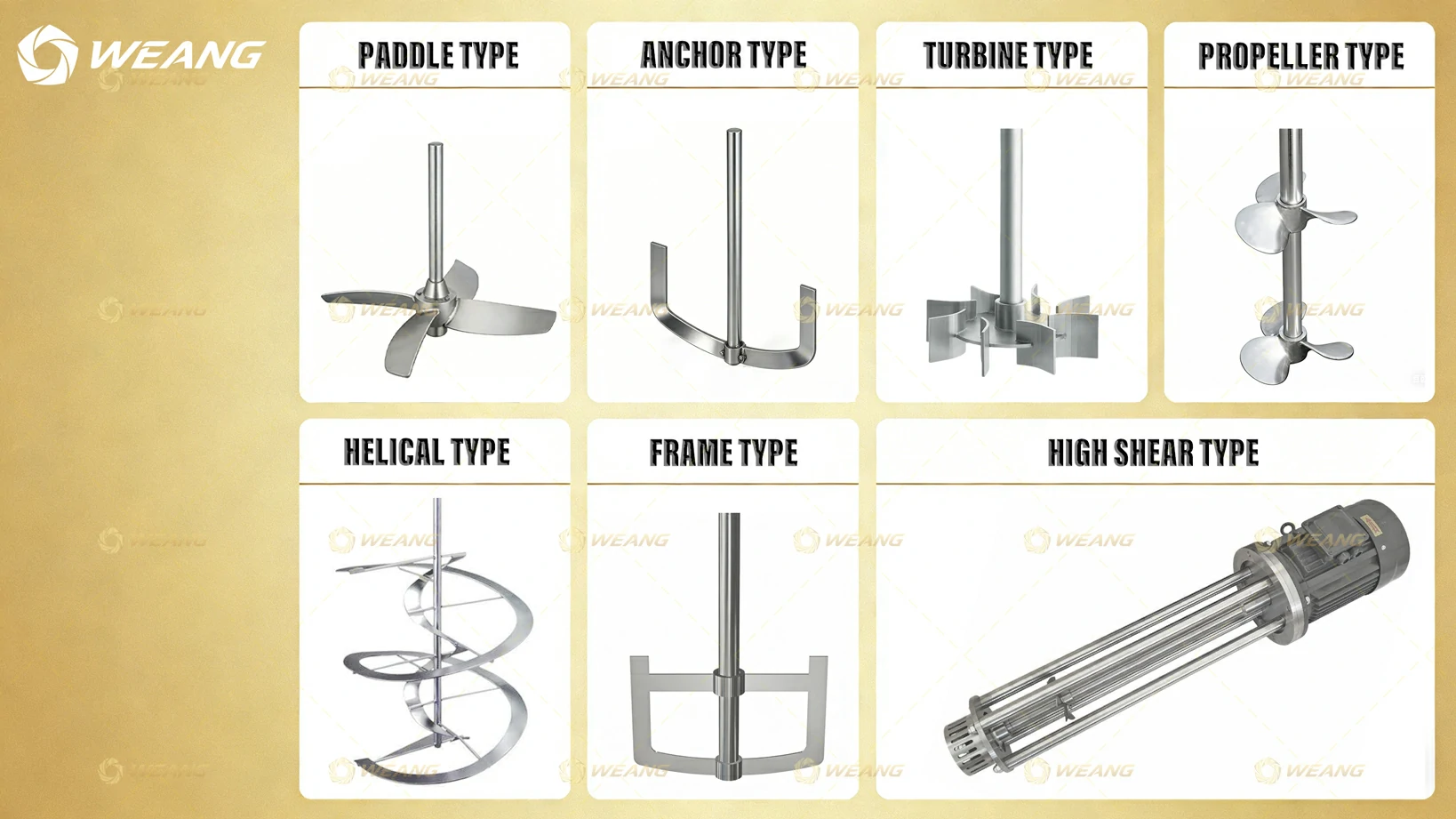

• Equipped with agitators such as:
  • Paddle type
  • Anchor type
  • Turbine type
• Functions:
  • Ensures uniform mixing and dispersion
  • Enhances heat and mass transfer
  • Prevents local overheating and uneven reactions

3. Heating & Cooling System

• Heating Methods:
  • Jacket heating
  • Half-coil / internal coil
  • Media: thermal oil, steam, or hot water
• Cooling Methods:
  • Circulating cooling water or other media
  • Removes excess heat from exothermic reactions
• Enables precise temperature control throughout the process

4. Temperature & Pressure Control System

• Real-time monitoring via sensors and instrumentation
• Automatic adjustment of process parameters
• Ensures:
  • Optimal reaction conditions
  • Safe operation (prevents overpressure/overheating)

5. Condensation & Reflux System

• Essential for polycondensation reactions
• Condenses by-products (e.g., water, alcohol)
• Separates via decanter
• Returns unreacted materials back into the reactor

→ Improves reaction efficiency and conversion rate

Reactor Types & Structural Options

Different production processes require different reactor configurations. Choosing the right type significantly impacts efficiency and product quality.

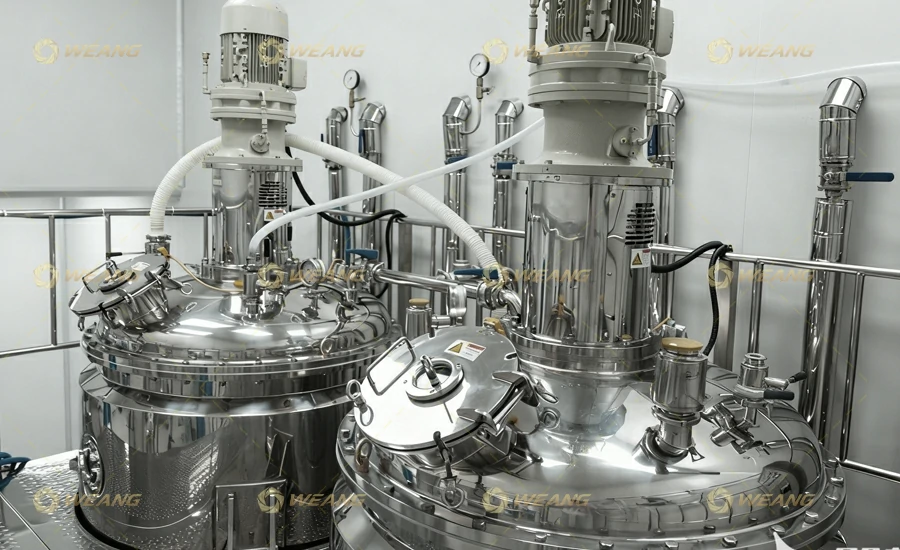

1. Jacketed Reactor

• Most common design
• Heating/cooling via jacket
• Suitable for general resin production

2. Coil Reactor (Internal / Half Coil)

• Faster heat transfer efficiency
• Suitable for high-viscosity or strong exothermic reactions

3. Vacuum Reactor

• Operates under reduced pressure
• Ideal for:
  • Solvent removal
  • Moisture-sensitive reactions
    → Improves product purity

4. Glass-Lined Reactor

• Excellent corrosion resistance
• Suitable for strong acid or corrosive materials

5. Stainless Steel Reactor

• Strong mechanical performance
• Widely used in most resin production lines
• Supports high temperature and pressure

Main Applications of Resin Reactor

1. Resin & Polymer Production

Primary application area:

• Alkyd resin
• Acrylic resin
• Epoxy resin
• Unsaturated polyester resin
• Amino resin

Ensures controlled molecular chain growth and stable product quality

2. Chemical & Fine Chemical Industry

Suitable for various chemical processes:

• Sulfonation
• Nitration
• Hydrogenation
• Hydrocarbon reactions

Widely used in:

• Adhesives
• Coatings & paints
• Rubber processing
• Dyes & curing agents

3. Material Treatment & Modification

• Resin impregnation of porous materials (e.g., carbon products)
• Resin blending and modification
• Improves:
  • Mechanical strength
  • Processing performance
  • Durability

4. Laboratory & R&D

• Small-scale reactors for:
  • Formula development
  • Process optimization

Features:

• Advanced monitoring (e.g., torque, viscosity trends)
• High flexibility for experimental conditions

How to Choose the Right Resin Reactor

Selecting the correct reactor is critical for production efficiency and cost control. Key factors include:

1. Raw Material Characteristics

• Corrosiveness → choose glass-lined or SS316L
• Viscosity → select appropriate agitator type
• Reaction activity → determine heat transfer method

2. Production Capacity

• Lab scale: 5L–100L
• Pilot scale: 100L–1000L
• Industrial scale: 1000L–50,000L+

3. Heating Method

• Steam heating (fast, cost-effective)
• Thermal oil (high temperature up to 300°C)
• Electric heating (precise but higher cost)

4. Automation Level

• Manual control
• Semi-automatic
• Fully automatic (PLC / DCS system)

Safety & Industry Standards

A high-quality resin reactor must comply with strict safety and manufacturing standards:

• Pressure vessel certifications (ASME, PED)

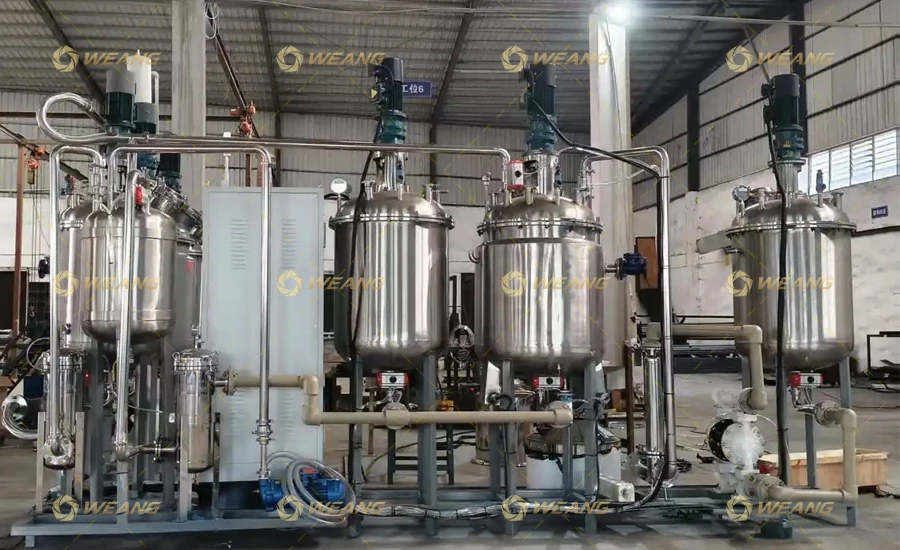

• Explosion-proof design (for flammable materials)
• Safety valves and rupture discs
• Emergency shutdown systems

These features ensure safe, stable, and continuous production.

Key Advantages of Resin Reactor

• Precise temperature and pressure control
• Efficient heat and mass transfer
• High safety and automation level
• Strong corrosion resistance
• Customizable design for different processes
• Suitable for both batch and continuous production

Turnkey Resin Production Solutions

Beyond a single reactor, a complete resin production line typically includes:

• Raw material storage tanks
• Feeding system
• Resin reactor
• Condenser & separator
• Vacuum system
• Filtration system
• Filling & packaging system

Weang provide:

• Process design & layout
• Equipment manufacturing
• Installation & commissioning
• Operator training
• After-sales support

The resin reactor is a highly integrated system combining mechanical engineering, chemical processes, and automation control.

By ensuring a stable, efficient, and controllable reaction environment, it becomes an indispensable piece of equipment in modern resin and material manufacturing industries.
