| Model | Capacity (m³) | Motor Power (kW) | Design Pressure (MPa) | Tank Thickness (mm) | PTFE Lining Thickness (mm) |
|---|---|---|---|---|---|
| WAPTR-500 | 0.5 | 1.5 | 0.6 | 8 | 3 |
| WAPTR-1000 | 1 | 2.2 | 0.6 | 10 | 3 |
| WAPTR-2000 | 2 | 3 | 0.6 | 12 | 4 |
| WAPTR-3000 | 3 | 4 | 0.6 | 14 | 4 |
| WAPTR-5000 | 5 | 5.5 | 0.6 | 16 | 5 |
| WAPTR-10000 | 10 | 7.5 | 0.6 | 18 | 5 |
Customized lining thickness, pressure rating, and agitation systems available.

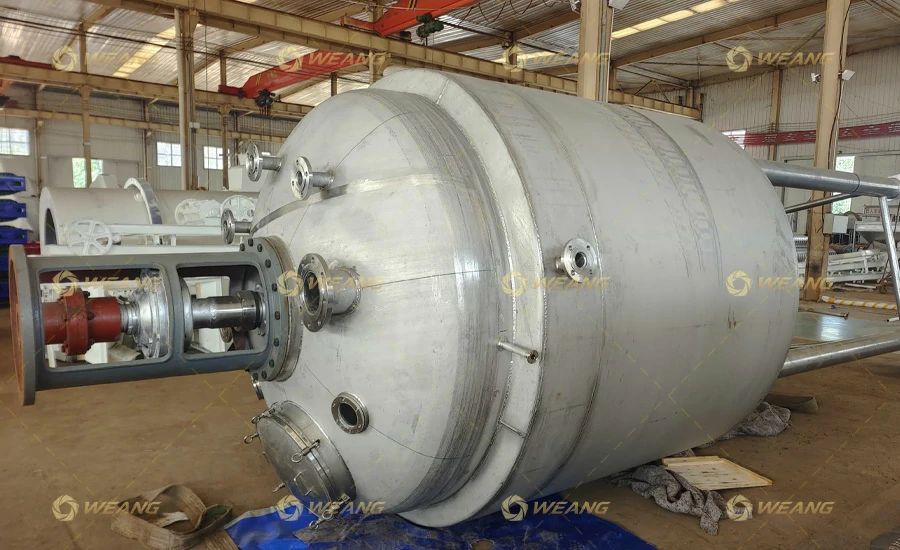

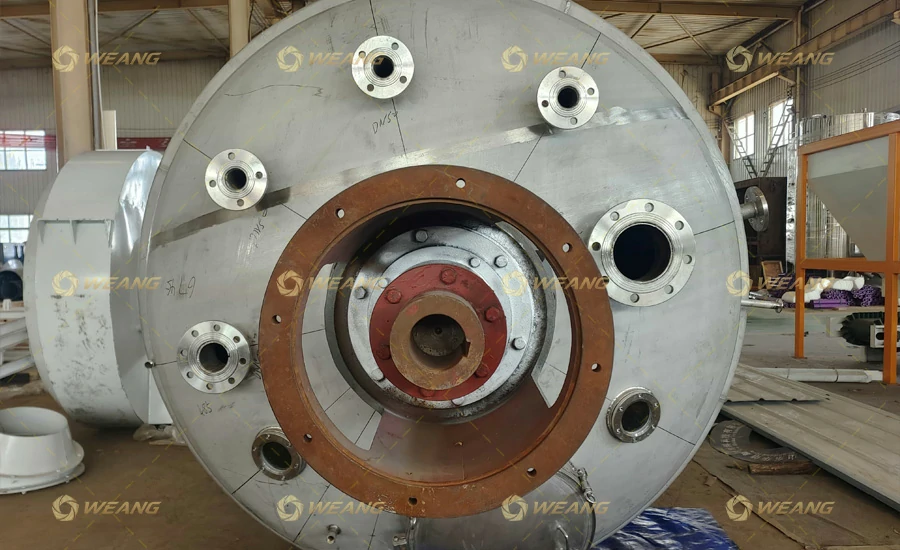

The PTFE-lined reactor is designed for chemical processes involving highly corrosive materials. The inner surface of the reactor is lined with high-performance PTFE (polytetrafluoroethylene), providing excellent chemical resistance and preventing corrosion caused by aggressive acids, alkalis, and solvents.
The external vessel is manufactured from high-strength steel or stainless steel to ensure structural stability, while the PTFE lining protects the internal surface and maintains product purity. The reactor can be equipped with efficient agitation systems, heating or cooling jackets, and precise temperature control devices to meet different process requirements.
PTFE-lined reactors are widely used in chemical manufacturing, pharmaceutical production, fine chemical synthesis, and specialty material processing where corrosion resistance is critical.
Weang provides reliable reactor equipment designed for demanding industrial environments. Our PTFE-lined reactors combine corrosion resistance, strong structural design, and flexible customization to support complex chemical processes.
With professional engineering support and strict manufacturing standards, WA reactor systems deliver safe, efficient, and long-lasting performance for industrial production.
