| Model | Capacity (m³) | Motor Power (kW) | Agitator Speed (rpm) | Inner Tank Thickness (mm) | Jacket Thickness (mm) |
|---|---|---|---|---|---|
| WASSR-JR-500 | 0.5 | 1.5 | 0–60 | 4 | 4 |
| WASSR-JR-1000 | 1 | 2.2 | 0–60 | 5 | 4 |
| WASSR-JR-2000 | 2 | 4 | 0–60 | 6 | 5 |
| WASSR-JR-3000 | 3 | 5.5 | 0–60 | 6 | 5 |
| WASSR-JR-5000 | 5 | 7.5 | 0–60 | 8 | 6 |
| WASSR-JR-10000 | 10 | 11 | 0–50 | 10 | 8 |

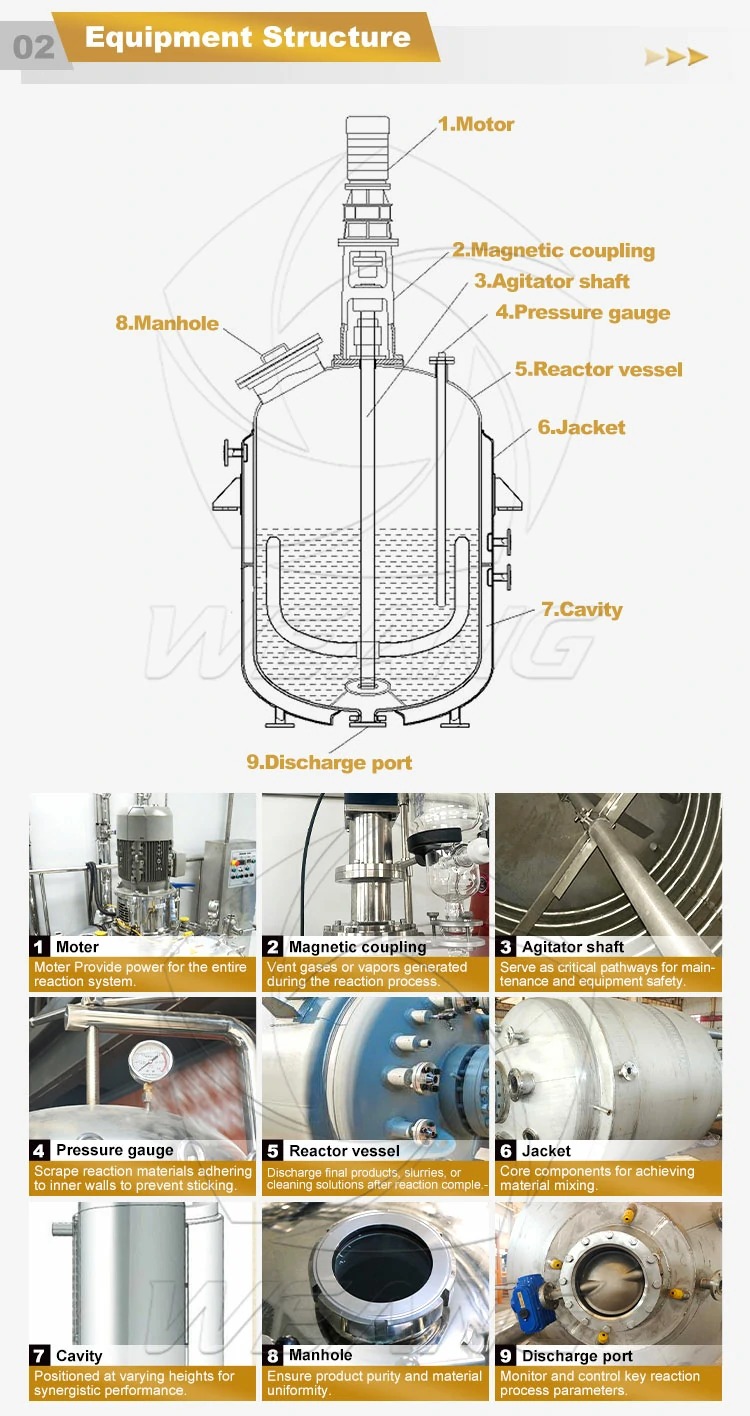

The WEANG series jacketed stainless steel reactor is engineered for precise temperature-controlled chemical reactions and mixing processes. The jacketed design allows efficient heat transfer using steam, thermal oil, or cooling water, ensuring stable reaction conditions and improved production efficiency.
Manufactured from high-quality stainless steel (SS304 or SS316L), this reactor provides excellent corrosion resistance, structural strength, and long-term durability in demanding industrial environments.

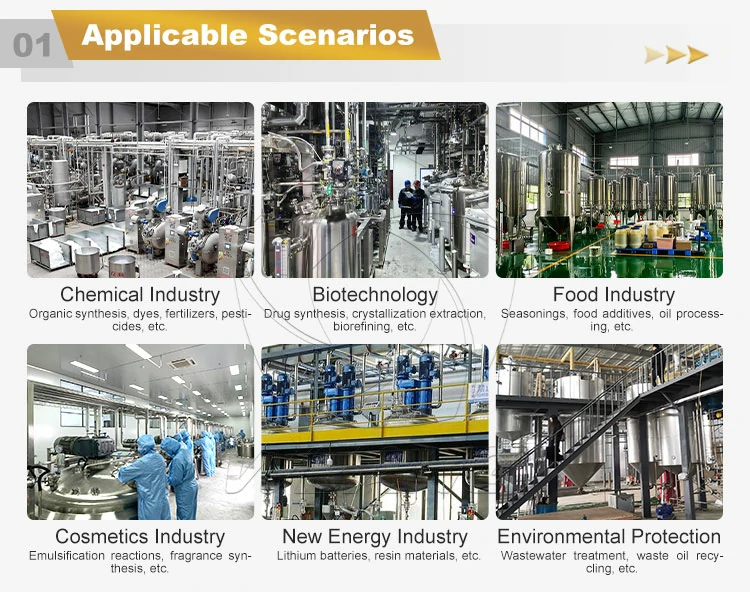

With flexible capacity options and customizable agitation systems, the reactor is widely used in chemical processing, pharmaceutical production, resin manufacturing, coatings, adhesives, and specialty materials industries.
At Weang, we focus on delivering reliable and customizable industrial reactor solutions for global chemical manufacturers. Both reactors and minxing tanks are engineered with strict quality standards, precision fabrication, and flexible configuration options to meet diverse processing demands.
From design consultation to production and global delivery, our team ensures professional support and consistent product performance. Partner with Weang for efficient, durable, and fully tailored reactor systems built for long-term industrial success.
