| Model | Capacity (m³) | Motor Power (kW) | Design Pressure (MPa) | Steel Shell Thickness (mm) | Glass Lining Thickness (mm) |
|---|---|---|---|---|---|
| WAGLR-SR-500 | 0.5 | 1.5 | 0.3 | 10 | 0.8–1.2 |
| WAGLR-SR-1000 | 1 | 2.2 | 0.3 | 12 | 0.8–1.2 |
| WAGLR-SR-2000 | 2 | 4 | 0.3 | 14 | 0.8–1.2 |
| WAGLR-SR-3000 | 3 | 5.5 | 0.3 | 16 | 0.8–1.2 |
| WAGLR-SR-5000 | 5 | 7.5 | 0.3 | 18 | 0.8–1.2 |
| WAGLR-SR-10000 | 10 | 11 | 0.3 | 20 | 0.8–1.2 |
Custom capacities and structural designs available upon request.

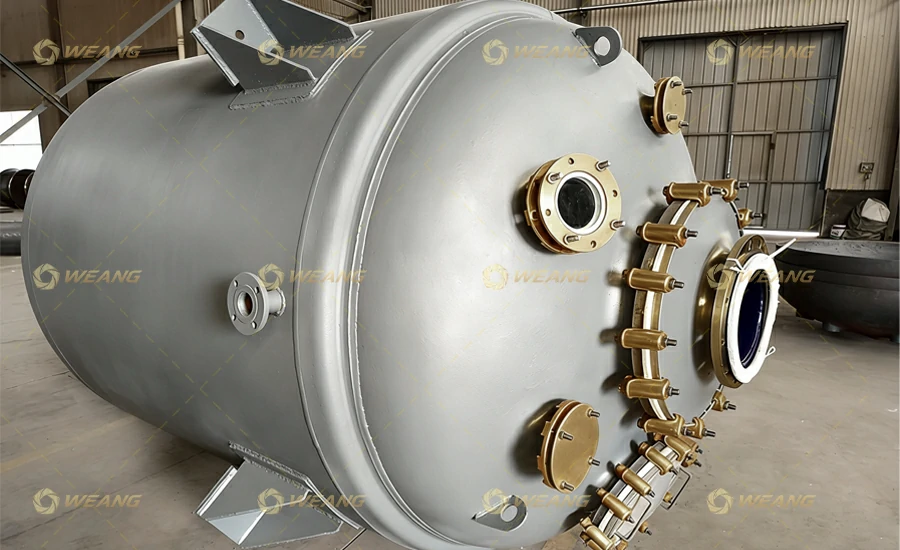

The glass lined storage and reaction vessel is designed for both chemical storage and reaction processing involving corrosive materials. The inner glass lining provides excellent resistance to acids, solvents, and aggressive chemicals, ensuring high product purity and preventing contamination.
The vessel combines the chemical stability of glass with the mechanical strength of steel, allowing it to perform reliably in demanding industrial environments. Optional agitation systems, heating jackets, and monitoring instruments can be integrated to support different processing requirements.
This equipment is widely used in pharmaceutical production, agrochemical manufacturing, fine chemical synthesis, dye production, and other corrosion-sensitive industrial processes.
