| Model | Capacity (m³) | Heating Area (m²) | Motor Power (kW) | Inner Tank Thickness (mm) | Coil Thickness (mm) |
|---|---|---|---|---|---|
| WACR-500 | 0.5 | 1.2 | 1.5 | 5 | 3 |
| WACR-1000 | 1 | 2.0 | 2.2 | 6 | 3 |
| WACR-2000 | 2 | 3.5 | 4 | 8 | 4 |
| WACR-3000 | 3 | 4.8 | 5.5 | 8 | 4 |
| WACR-5000 | 5 | 7.2 | 7.5 | 10 | 5 |
| WACR-10000 | 10 | 12.5 | 11 | 12 | 6 |
Heating or cooling coil configuration can be customized according to process requirements.

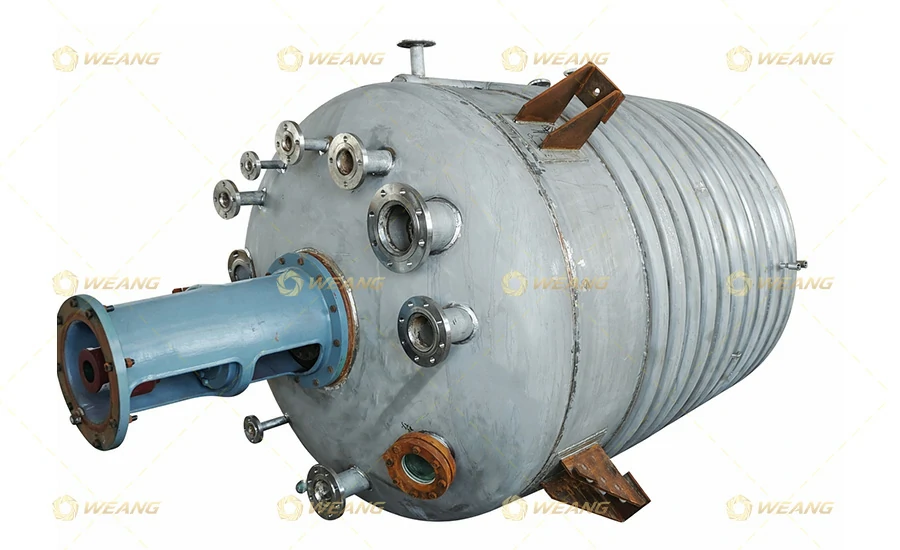

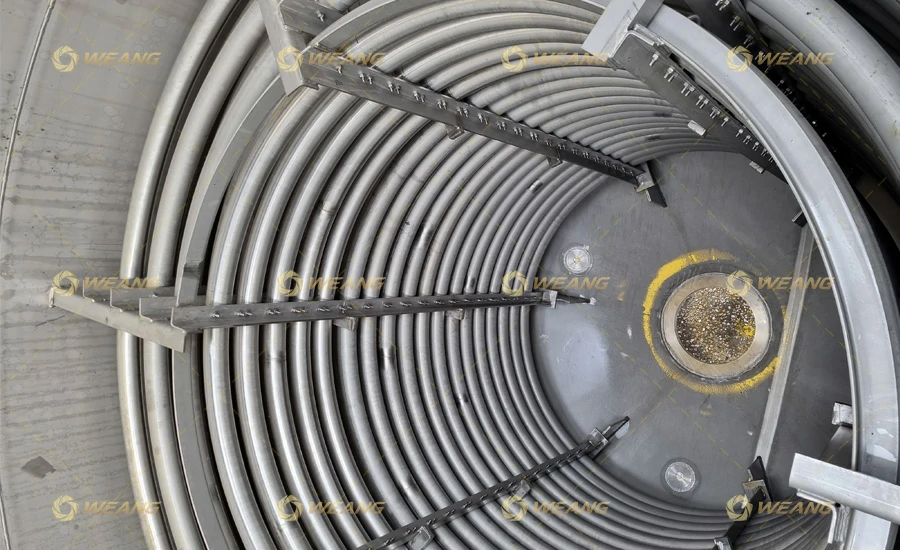

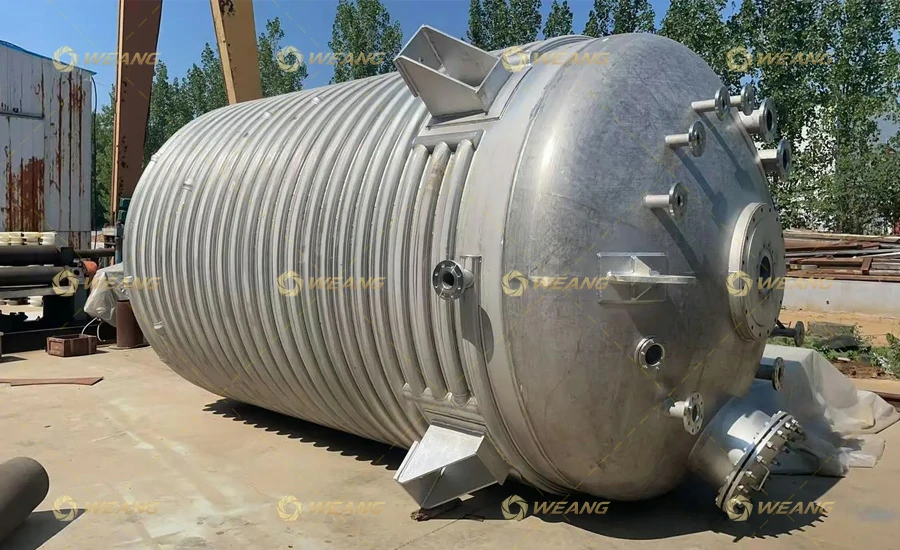

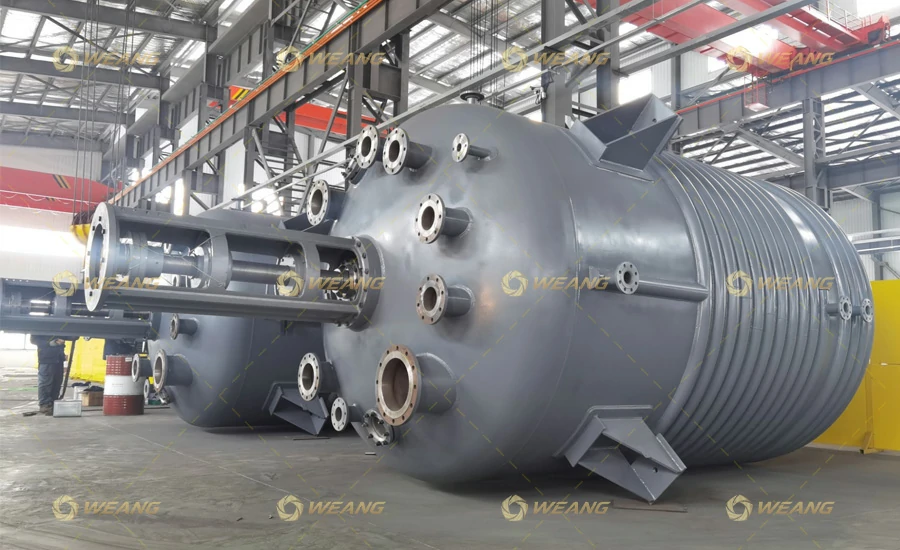

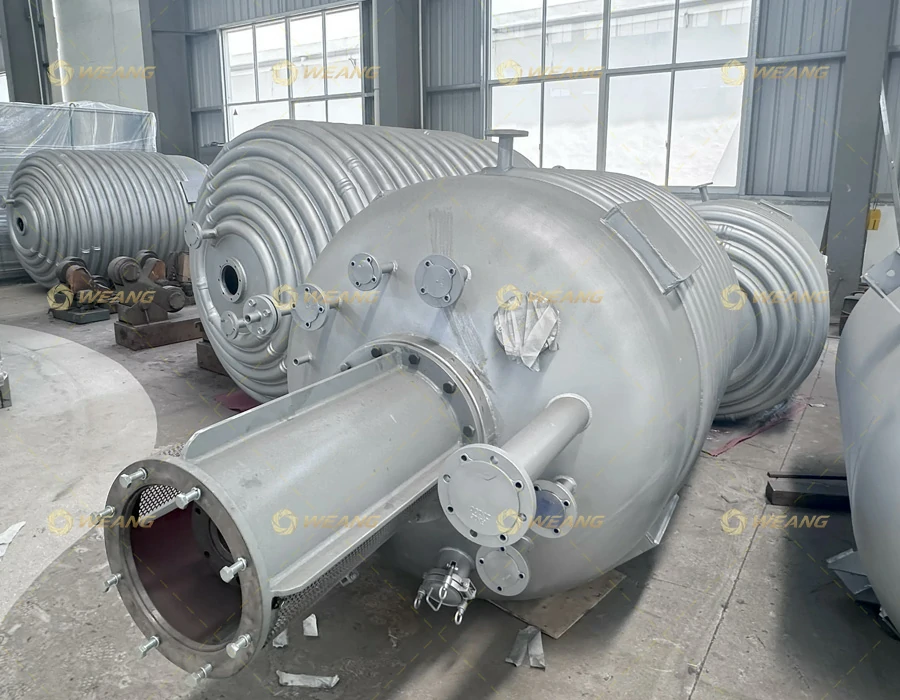

The coil-type reactor is designed to provide efficient temperature control for industrial chemical reactions. The reactor incorporates internal or external coil structures that allow heating or cooling media to circulate, ensuring uniform heat transfer throughout the reaction vessel.
This design improves thermal efficiency and enables precise temperature management during chemical processing. Constructed from high-quality stainless steel, the reactor offers excellent corrosion resistance and structural strength for long-term industrial operation.
Coil-type reactors are widely used in chemical production, polymer processing, resin manufacturing, pharmaceutical synthesis, and other temperature-sensitive reaction processes.
Weang manufactures advanced reactor systems designed to meet the demanding requirements of modern chemical production. Each WA series reactor is engineered with precise fabrication, strict quality control, and flexible customization capabilities.
With reliable temperature control, durable construction, and professional engineering support, Weang reactors provide efficient and dependable solutions for industrial processing applications.
