| Model | Tank Capacity (L) | Pump Power (kW) | Heating Method | Flow Rate (m³/h) | Material |
|---|---|---|---|---|---|
| WACIP-500 | 500 | 1.5 | Electric / Steam | 5 | SS304 |
| WACIP-1000 | 1000 | 2.2 | Electric / Steam | 8 | SS304 |
| WACIP-2000 | 2000 | 3 | Electric / Steam | 12 | SS316 |
| WACIP-3000 | 3000 | 4 | Electric / Steam | 15 | SS316 |
| WACIP-5000 | 5000 | 5.5 | Electric / Steam | 20 | SS316 |
Customized configurations available for multi-tank CIP systems and fully automated cleaning processes.

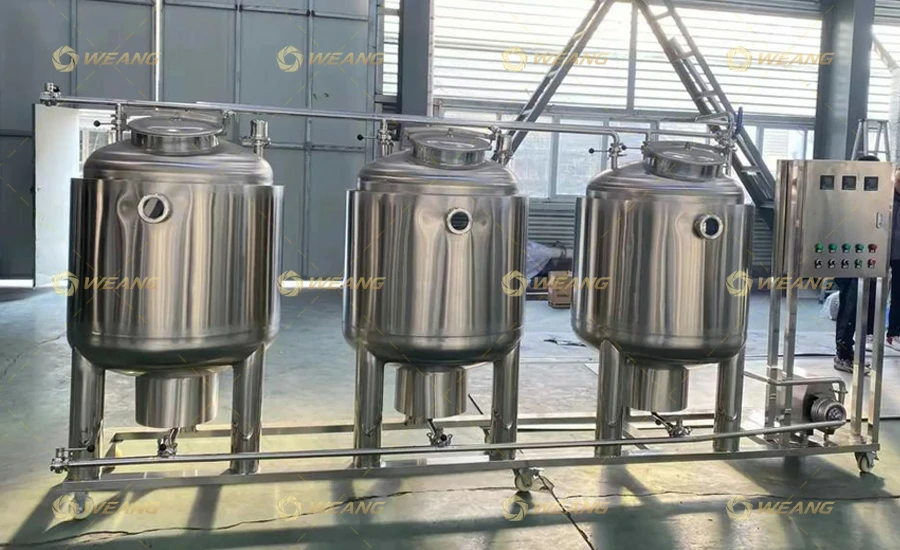

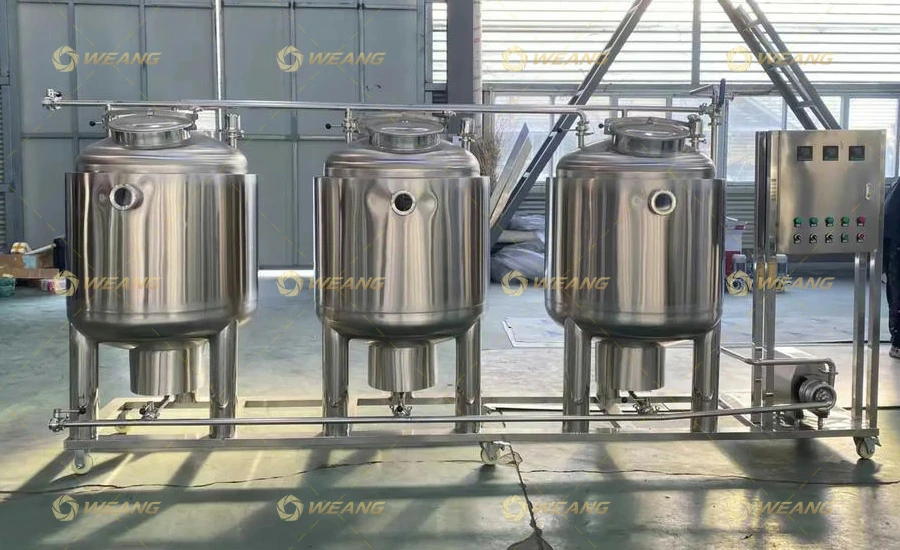

The Weang CIP cleaning system is designed for automatic cleaning of reactors, mixing tanks, pipelines, and other processing equipment without disassembly. The system circulates cleaning solutions through the equipment using high-efficiency pumps, ensuring thorough internal cleaning and sanitation.

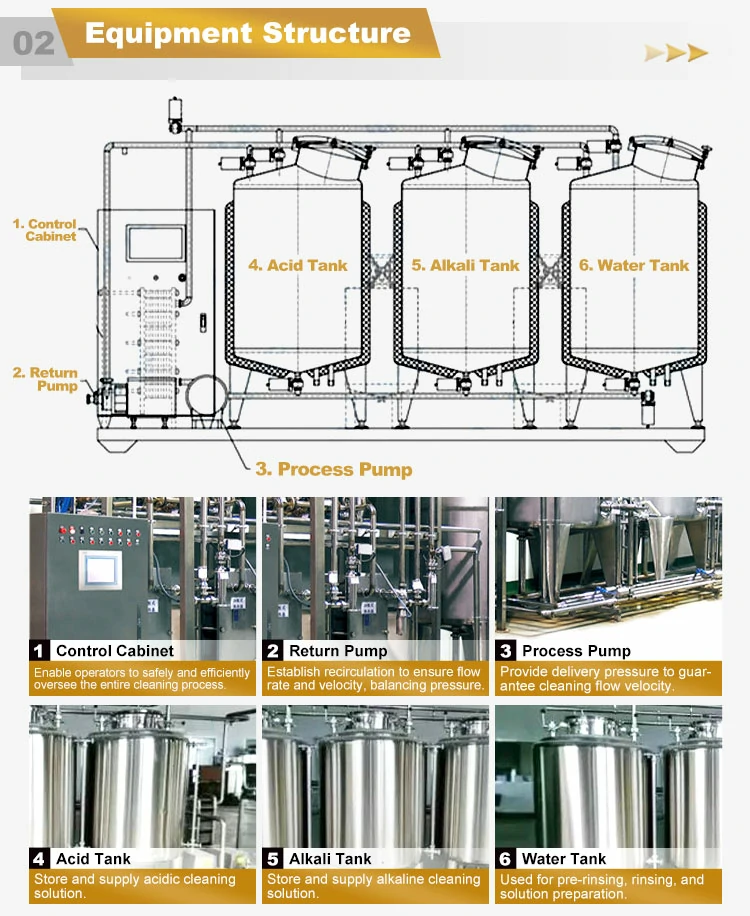

The system typically includes cleaning tanks, circulation pumps, heating devices, pipelines, and control systems. Depending on production requirements, the system can support multiple cleaning stages such as water rinse, alkaline cleaning, acid cleaning, and final sterilization.
CIP cleaning systems are widely used in chemical processing, pharmaceutical manufacturing, food production, and biotechnology industries where high hygiene standards and efficient equipment cleaning are required.
WEANG provides reliable process equipment and cleaning solutions for modern industrial production lines. Our CIP cleaning systems are designed with durable materials, efficient circulation technology, and flexible customization options to meet various industrial sanitation requirements.
With professional engineering support and strict quality standards, WEANG equipment helps ensure safe operation, improved productivity, and consistent process cleanliness.
